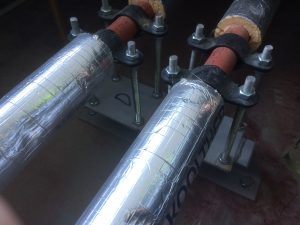

Band AnchorThe Slip Anchor and Band Anchor are an effective way of installing anchors on site with relatively low costs.

The idea is to use multiple split bands to ensure a firm mechanical grip on the pipework. In the case of the Slip Anchor, a band is placed on either side of a slip coupling to add a failsafe mechanism. The coupling could be any type of slip coupling, but not a pipe connector unless its a welded flange.







Copper

Pipe Size Band of Material No Of Bands Finish Anchor Type
15 25 x 3 2 Black Powder Coat Slip
22 25 x 3 2 Black Powder Coat Slip
28 25 x 3 2 Black Powder Coat Slip
35 25 x 3 2 Black Powder Coat Slip
42 30 x 3 2 Black Powder Coat Slip
54 30 x 3 2 Black Powder Coat Slip
67 30 x 3 2 Black Powder Coat Slip
76 30 x 3 2 Black Powder Coat Slip
108 40 x 3 2 Black Powder Coat Slip
15 25 x 3 2 Black Powder Coat Slip
20 25 x 3 2 Black Powder Coat Slip
25 25 x 3 2 Black Powder Coat Slip
32 25 x 3 2 Black Powder Coat Slip
40 30 x 3 2 Black Powder Coat Slip
50 30 x 3 2 BZP Slip
65 30 x 3 2 BZP Slip
80 30 x 3 2 BZP Slip
100 40 x 3 2 BZP Slip

Steel

Pipe Size Band Material No Of Bands Finish Anchor Type
15 25 x 3 2 Black Powder Coat Band
22 25 x 3 2 Black Powder Coat Band
28 25 x 3 2 Black Powder Coat Band
35 25 x 3 2 Black Powder Coat Band
42 30 x 3 2 Black Powder Coat Band
54 30 x 3 3 Black Powder Coat Band
67 30 x 3 3 Black Powder Coat Band
76 30 x 3 3 Black Powder Coat Band
108 40 x 3 3 Black Powder Coat Band
15 25 x 3 2 Black Powder Coat Band
20 25 x 3 2 Black Powder Coat Band
25 25 x 3 2 Black Powder Coat Band
32 25 x 3 2 Black Powder Coat Band
40 30 x 3 2 Black Powder Coat Band
50 30 x 3 3 BZP Band
65 30 x 3 3 BZP Band
80 30 x 3 3 BZP Band
100 40 x 3 3 BZP Band
