LF Range – Low Friction Guides

Low Friction Slide Guides1

Low Friction Slide Guides2

Low Friction Slide Guides

LF Range – Low Friction Guides

Construction

  • Mild Steel
  • BZP Finish
  • Low Friction Slide Insert

For Use With

  • Unlined & Rubber Lined Clips
  • Bossed Split Bands on Larger Sizes

Special Features

  • Dual & Triple Bosses
  • Lockable for transport



Type Internal Thread External Thread Max Travel SWL

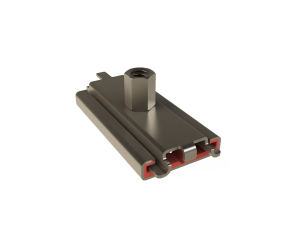

LF1  M8/M10  N/A  65mm  0.5kN

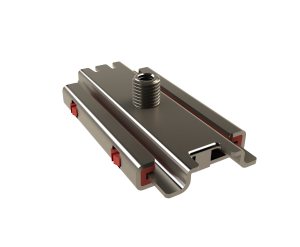

LF2-1 M10 M16 90mm 2.0kN

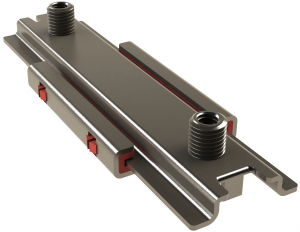

LF2-2 M10 M16 120mm 2.0kN

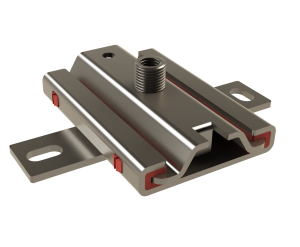

LF3-1 M12/M16 1/2″ 120mm 6.0kN

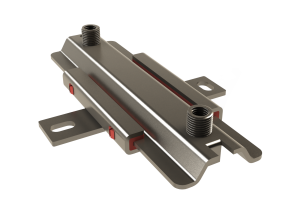

LF3-2 M12/M16 1/2″ 135mm 6.0kN

EXCO MS1 & 2 Modular Slide Guide Assembly

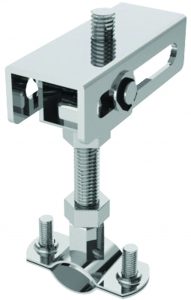

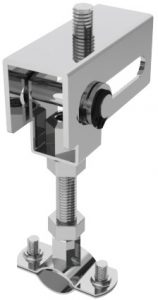

EXCO MS1 Slimline Modular Slide Guide       EXCO MS2 Standard Modular Slide Guide

Construction

  • Mild Steel
  • BZP Finish

For Use With

  • Unlined & Rubber Lined Brackets to Create a Guided System



Type Internal Thread Max Travel SWL
MS1 M10 50mm 0.25kN
MS2 M8/M10 50mm 0.25kN

EXCO BH – Ball Hanger

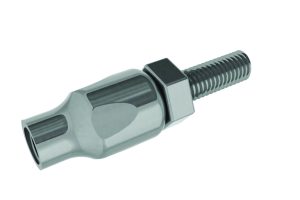

EXCO BH - Ball Hanger

Construction

  • Mild Steel
  • BZP Finish

For Use With

  • Unlined & Lined Clip Range & hanging brackets to reduce drop rod lateral loads
Size Movement SWL
M8 +/-5º 0.15kN
M10 +/-5º 0.20kN
M12 +/-5º 0.25kN
