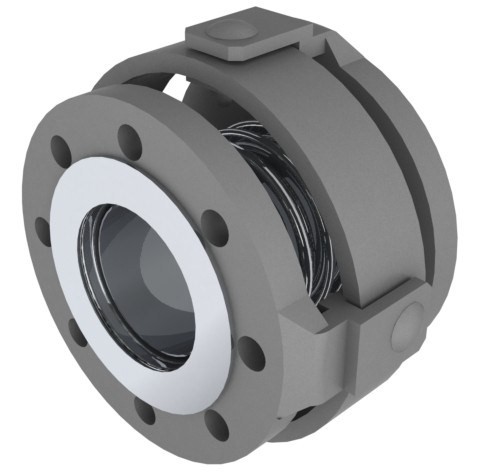

The EXCO Type GI1 & GI2 Gimbal Expansion compensators are suitable for use on systems up to 200°C at 16 bar pressure. All units are supplied at installation lengths and are pre stressed.
Please note EXCO Ltd can design and supply gimbal expansion compensators to accommodate higher system temperatures/pressures or special dimensions. Please advise at time of enquiry/order the system temperature and pressure to allow correct selection of compensator.
| Size (mm) | Angular Deflection | Installed Length | Force to Deflect Nm/deg | Part Number |
|---|---|---|---|---|
| 25 | +/- 5° | 195 | 8.3 | GI1/025/PN16 |
| 32 | +/-5° | 195 | 8.3 | GI1/032/PN16 |
| 40 | +/-5° | 195 | 8.3 | GI1/040/PN16 |
| 50 | +/-5° | 180 | 8.3 | GI1/050/PN16 |
| 65 | +/-5° | 180 | 10.1 | GI1/065/PN16 |
| 80 | +/-5° | 180 | 31.4 | GI1/080/PN16 |
| 100 | +/-5° | 180 | 60.8 | GI1/100/PN16 |
| 125 | +/-6.5° | 225 | 36.2 | GI1/125/PN16 |
| 150 | +/-6.5° | 225 | 55.3 | GI1/150/PN16 |
| 200 | +/-7.5° | 250 | 107.1 | GI1/200/PN16 |
| 250 | +/-7.5° | 250 | 192 | GI1/250/PN16 |
