Endless Wrap wrap gives the users versatility when installing in a multitude of common site conditions, Endless Wrap is supplied in a convenient 25m long, 40mm wide roll.
Endless Wrap is an intumescent material, based on elastomeric thermoplastic polymers combined with active components that provide high a volume expansion and pressure seal in the event of a fire.

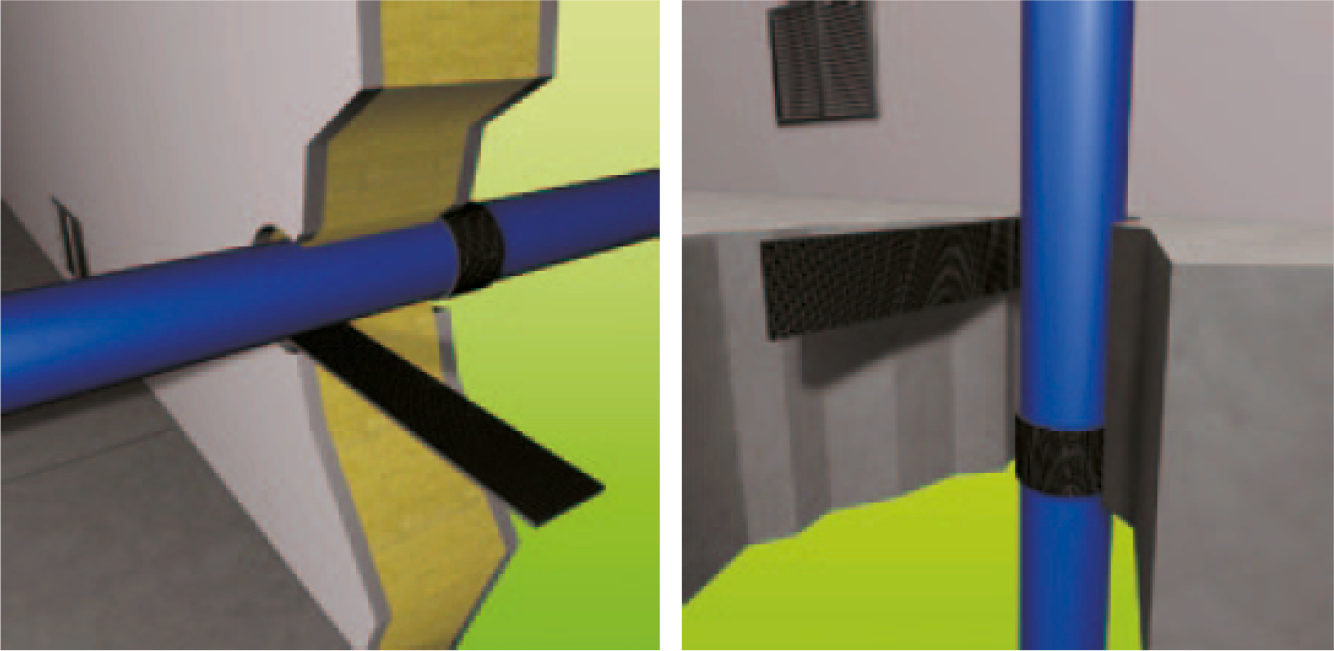

As plastics soften or insulation burns away in the heating condition of the fire, Endless Wrap expands to close off the void left by the pipe or insulation.
Compatible pipes and insulation (see tables) are tested to a size of 200mm in diameter through flexible walls and rigid floors and walls, and for use alongside the EXCO range of products.
Compatible With
- PVC
- PP
- MDPE
- PE
- PVC-U
- PVC-C
- ABS
- HDPE
- SAN+PVC
| ENDLESS WRAP CONFIGURATION FOR METALLIC PIPES WITH INSULATION UPTO 120MINS | ||
| INSULATION TYPE | No OF WRAPS | THICKNESS |
| Phenolic Foam | 2 | 4 |
| Elastomeric Foam | 2 | 4 |
| Glass Wool | 2 | 4 |
| Stone Wool | 2 | 4 |
| ENDLESS WRAP CONFIGURATION UPTO 120MINS | ||
| PIPE OD | No OF WRAPS | THICKNESS |
| 40 | 1 | 2 |
| 55 | 1 | 4 |
| 63 | 2 | 4 |
| 75 | 2 | 4 |
| 82 | 2 | 4 |
| 90 | 3 | 6 |
| 110 | 3 | 6 |
| 125 | 4 | 8 |
| 160 | 4 | 8 |
| 200 | 5 | 10 |
