Weight (Kg) Material Type Hole Tapping Size Dimensions (mm) Width x Height Part Number
 150 Neoprene Commercial Grade Black Rubber  M10  75 x 32 CMC/150/M
300 Neoprene Commercial Grade Black Rubber M12 90 x 40 CMC/300/M

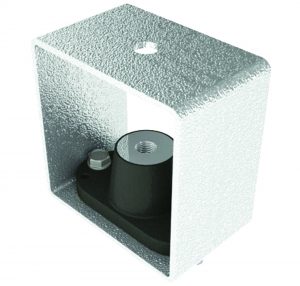

Neoprene HangerNeoprene Hanger

Key Points

  • isolating vibration from Pipework
  • Please advise the weight of plant requiring isolation for hanger recommendations



Weight (Kg) Material Type Hole Tapping Size Dimensions (mm) Width x Height Part Number
 150 Neoprene Commercial Grade Black Rubber  M10  75 x 32 CMC/150/M
300 Neoprene Commercial Grade Black Rubber M12 90 x 40 CMC/300/M



Please Note:

Mount selection should be based upon equipment weight – EXCO Ltd can advise on selection at time of ordering.

Plant and pipework can be loaded unevenly, therefore different mount loads may be required at different locations – Again EXCO Ltd can advise on selection at time of ordering.

Mounts when fitted should be loaded equally, installing one mount before another will lead to uneven load.
